Categories: E) Signal Transmitters

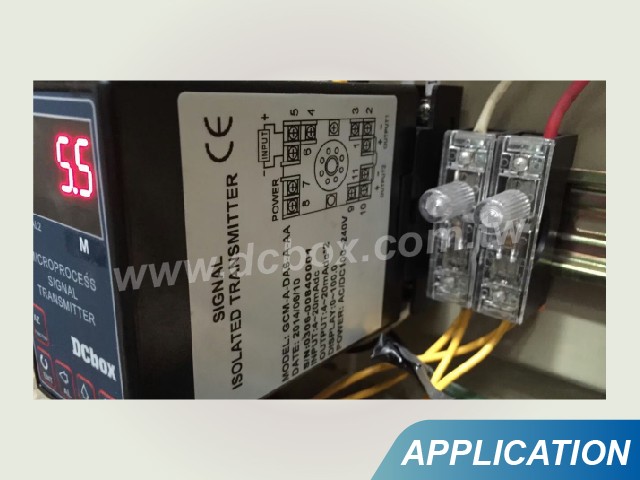

5 Digital Microprocessor Signal Isolated Transmitter with Alarms / RS-485
zoom

Type：
GCM-A
Name：
5 Digital Microprocessor Signal Isolated Transmitter with Alarms / RS-485



Description

*Accuracy: ±0.1% F.S. 1 digit (DC / Potentiometer / Resistor / PT-100 / Load Cell)
                  ±0.2% F.S. 1 digit (AC).
*Measuring AC, DC Voltage / AC, DC Current / Potentiometer / Resistor / PT-100 / Load Cell).
*High brightness 0.4" LED display range: -19999~99999; decimal point selectable.
*Surge test of AC 2000V / min between input / output / power.
*High stability, non-flammable case (PC), high safety.
*1~2 Alarms (Hi or Lo) programmable / Analog output (15 bit resolution) / RS-485 communication optional (The above options can exist together).
